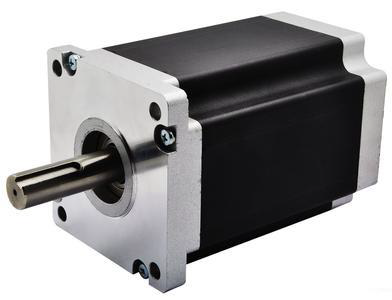

110mm 7.8VDC Hybrid Stepper Motor 1.8° 28Nm
Specifications
|
Type |
Voltage /phase [V] |
Current /phase [A] |
Resistance /phase [Ώ] |
Inductance /phase [mH] |
Holding Torque [Ncm] |
Detent Torque [Ncm] |
# of Leads |
Weight [kg] |
Length [mm] |
|
M110HB6504-201S0 |
7.8 |
6.5 |
1.2 |
22 |
2800 |
9.5 |
4 |
11.7 |
201 |
