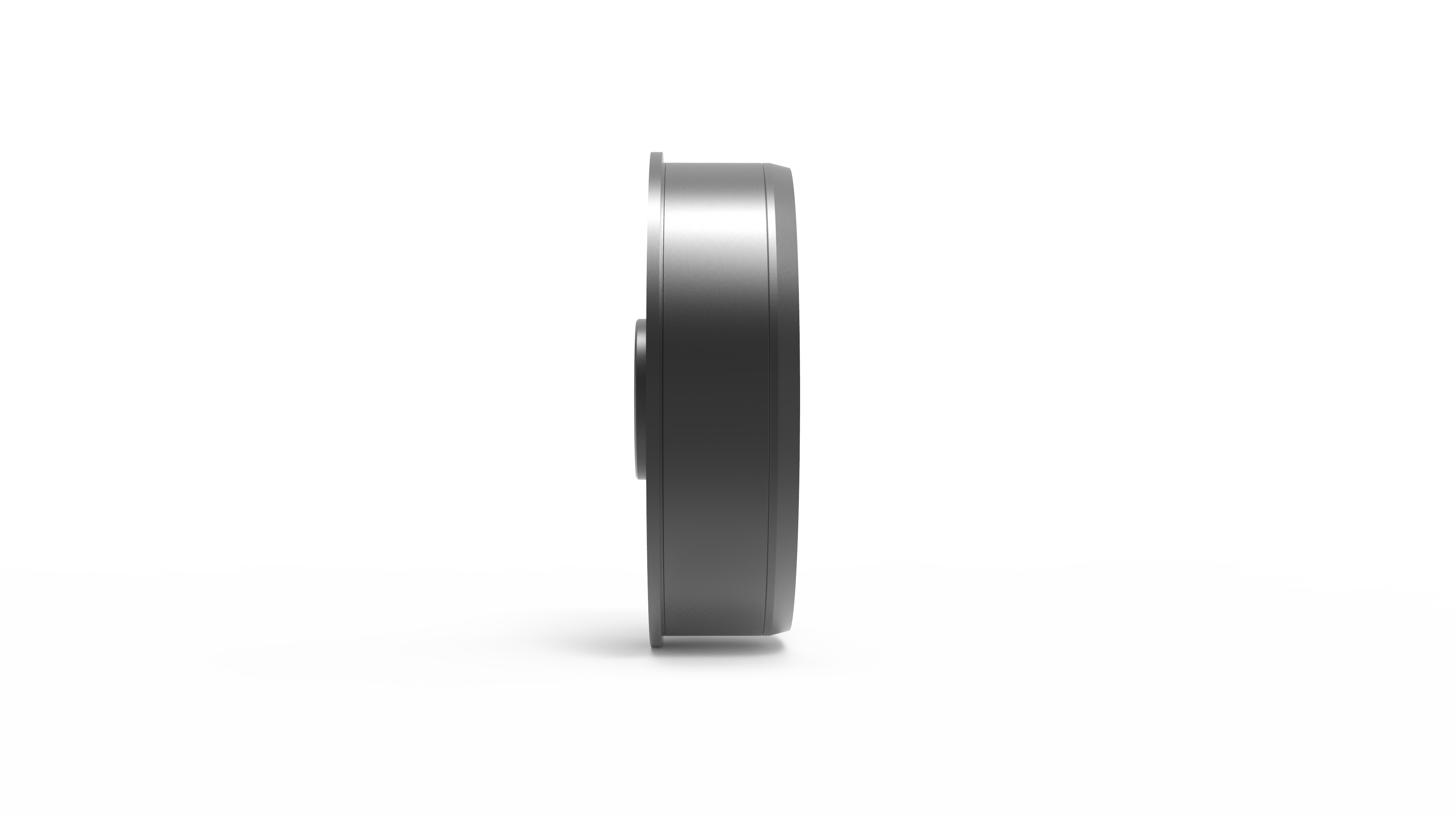

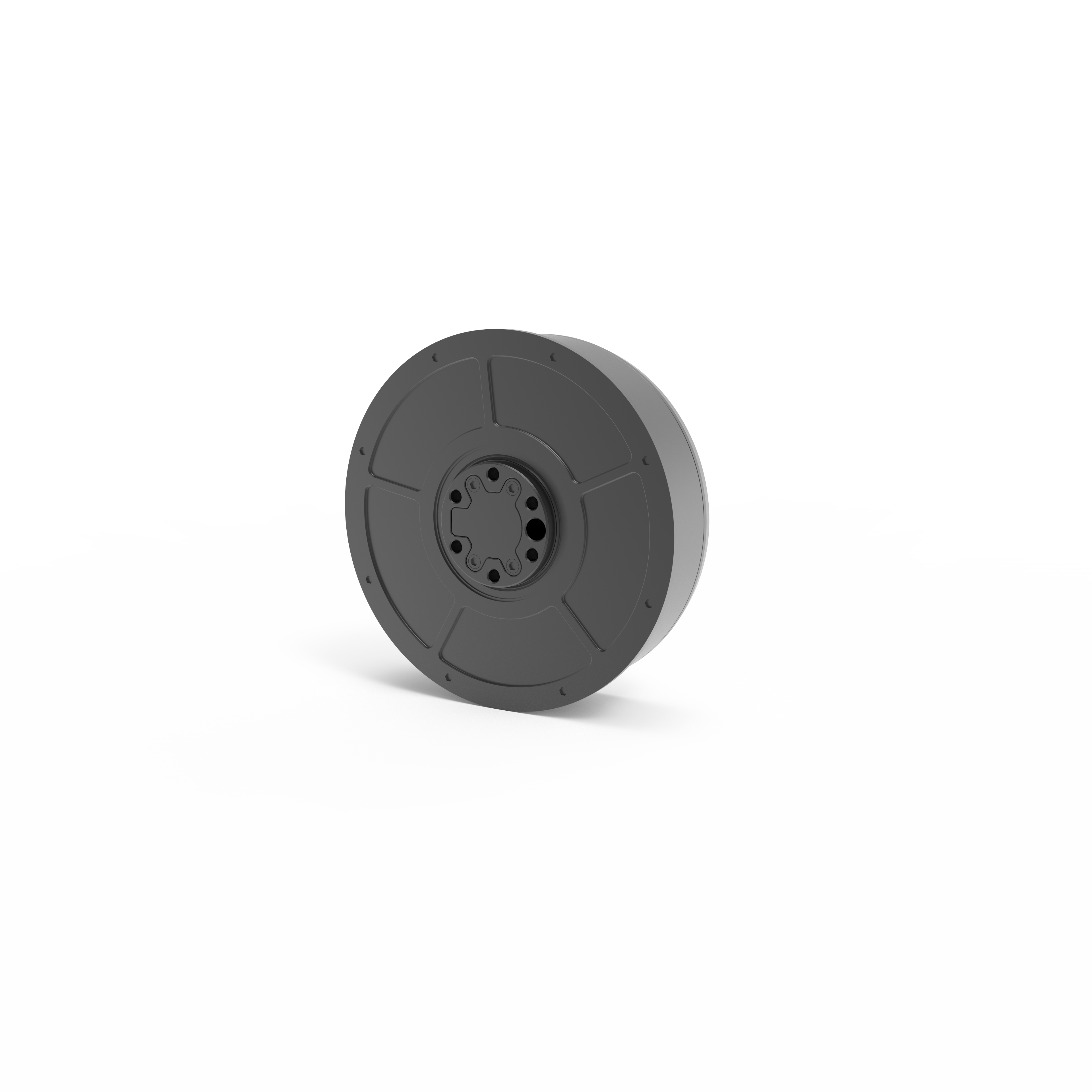

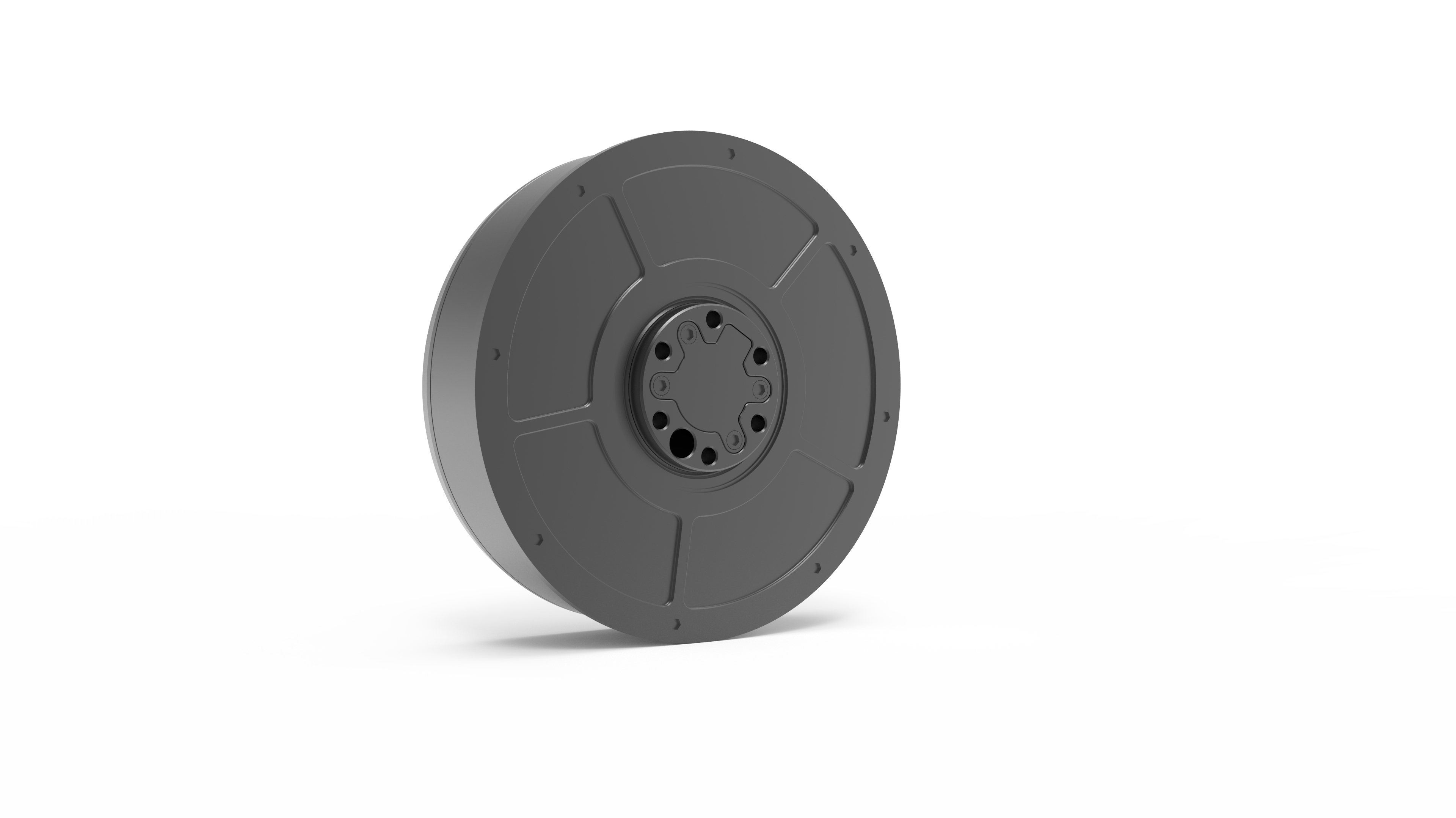

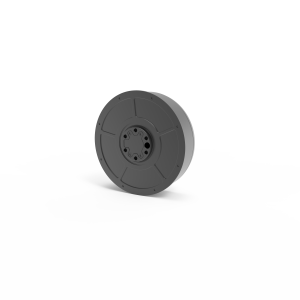

144MM 24V Hub Motor 95RPM 2NM 19.9W
1. Integrated design of motor and driver, compact structure and high integration;
2. Small size and large torque, support ultra-low speed;
3. Support CAN communication mode
4. The special structure design allows the temperature sensor to measure the overall temperature of the motor, more accurate control;
5. Through communication, it can get the position, speed, current, fault code and other information of the motor;
6. With a complete monitoring mechanism and protection functions
7. High IP protection level.
16949 Certificate Of Quality System
Patent Display
Company Profile
MRC Motion is a global company offering sales and project management services for worldwide customers, which specialises in designing and manufacturing various DC and AC motors certificated by IATF 16949: 2016. Based in Changzhou, China - 5km from Changzhou Airport and 1 hour to Shanghai by train.
MRC offers local support of sales, technical and logistical services through our office in Balingen, Germany.
We are a passionate and dedicated team, combining our interests and talents to achieve success. We develop what our customers need because we know what they are looking for. Our goal is to make complicated things simple.
Since 2004, we have been focussing on customer-specific solutions, quality and innovation with our range of DC traction motors, brushless motors, three-phase AC frequency conversion motors and permanent magnet synchronism motors.
As a result, there are wide applications in e-mobility such as tourist cars, golf cars, sweeper cars, forklift trucks and electrical vehicles and in other industries such as robots, pumps, air-conditioners and air compressors.
Research and development are the basis for future viability. This can either be product modifications or new innovations. Cooperation with institutes of higher education and universities ensures that our drive systems meet the demands of new technology.
In addition to continuous product development, the departments are responsible for ongoing improvement of manufacturing processes, production and testing systems.
Our core business is providing precision motion control solutions with great advantage on pricing, time, quality, reliability, traceability and flexibility.
Our mission is to fulfill highest requirements from our customers easily and quickly.
Work with us, win together!
Product Introduction
Workshop Display
Laboratory Display
Raw Materials Of Gearbox Stepper Motor
Automatic Winding Machine
Automatic Assembly Line
| Model | M024HB2000-144-42 | Rated voltage | 24VDC | ||
| No-load speed | 210±1rpm | Speed closed loop | Torque constant | 1.3NM/A | At rated speed |
| No-load current | ≤0.85A | Unladen | Speed constant | 10rpm/V | Unladen |
| Rated speed | 95rpm | Operating temperature | -20℃-45℃ | ||
| Rated torque | 2Nm | Motor weight | 1.86kg | ||
| Rated current | 1.5±0.1A | At rated torque and speed | Encoder resolution | 16384 | |
| Maximum efficiency | ≥58% | Absolute precision | 8192 | ||
| Blocking torque | ≥10Nm | Protection level | IP65 | ||
| Blocking current | ≤17A | Noise level | ≤52dB | Speed 200rpm, Distance 40cm |
Note: The above parameters are measured at the rated voltage of 24VDC.
