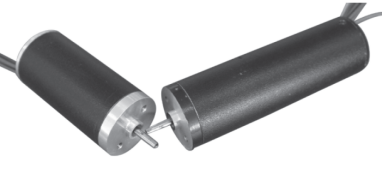

22mm 24V Inner rotor Brushless motor 3800rpm 0.02mNm 8W

Short Description:


Product Detail

Drawing

Product Tags

Specifications

Type M024BI0020-22R-68
Number of Poles 8
Number of Phases 3
Nominal Voltage    (VDC) 24
Rated Speed    (RPM) 3800
Continuous Stall Torque    (mN·m) 24
Rated Torque   (mN·m) 20
Output Power    (W) 8
Peak Torque    (mN·m) 60
Peak Current    (A) 2
Resistance    (ohms) 11.6
Inductance    (mH) 4.3
Torque Constant    (mN·m/A) 35.8
Back EMF    (V/KRPM) 2.65
Rotor Inertia    (g·cm2) 1.32
Body Length    (mm) 68
Weight    (kg) 0.12
Winding type Star
Hall Effect Angle 120°Electrical angle
Insulation Class B
Ambient Temperature Range -20~+50
Insulation Resistance min. 100MΩ, 500VDC
Dielectric Strength 360VAC for one second
Shaft Radial Play max. 0.02 (450g-load)
Shaft Axial Play max. 0.08 (450g-load)
Max. radial force 10N (10mm from the flange)
