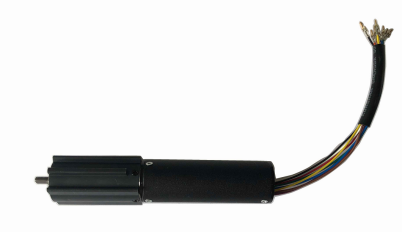

22mm 24V Planetary gear motor 75rpm 0.8Nm
Specifications
| Model | M024BI0020-22-113PG |
| Insulation class | F |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (N·m) | 0.02 |
| Rated Speed (RPM) | 4800 |
| No load Current (A) | 0.3 |
| No load speed (RPM) | 7000 |
| Line to line resistance(OHMS) | 9 |
| Line to line inductance(mH) | 2.2 |
| Torque Constant (N·m/A) | 0.033 |
| Back EMF (V/KRPM) | 3.5 |
| Length (mm) | 113 |
| Motor specifications with planetary gear | |
| Rated torque (N·m) | 0.8 |
| Rated Speed (RPM) | 75 |
| Ratio | 64:1 |
