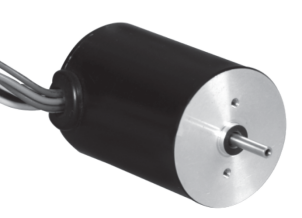

28mm 15V Inner rotor Brushless motor 8000rpm 0.005Nm 4W

Short Description:


Product Detail

Drawing

Product Tags

Specifications

Type M015BI0005-28-26
Number of Poles 4
Number of Phases 3
Nominal Voltage    (VDC) 15
Rated Speed    (RPM) 8000
Continuous Stall Torque    (mN·m) 6
Rated Torque   (mN·m) 5
Output Power    (W) 4
Peak Torque    (mN·m) 15
Peak Current    (A) 1.3
Resistance    (ohms) 8.2
Inductance    (mH) 2.3
Torque Constant    (mN·m/A) 14.3
Back EMF    (V/KRPM) 1.06
Rotor Inertia    (g·cm2) 2.35
Body Length    (mm) 26
Weight    (kg) 0.060
Winding type Star
Hall Effect Angle 120°Electrical angle
Insulation Class B
Insulation Resistance -20℃~+50℃
Dielectric Strength min. 100MΩ, 500VDC
Shaft Radial Play 360VAC for one second
Shaft Axial Play max. 0.02 (450g-load)
Max. radial force max. 0.08 (450g-load)
Max. axial force 10N (10mm from the flange)
