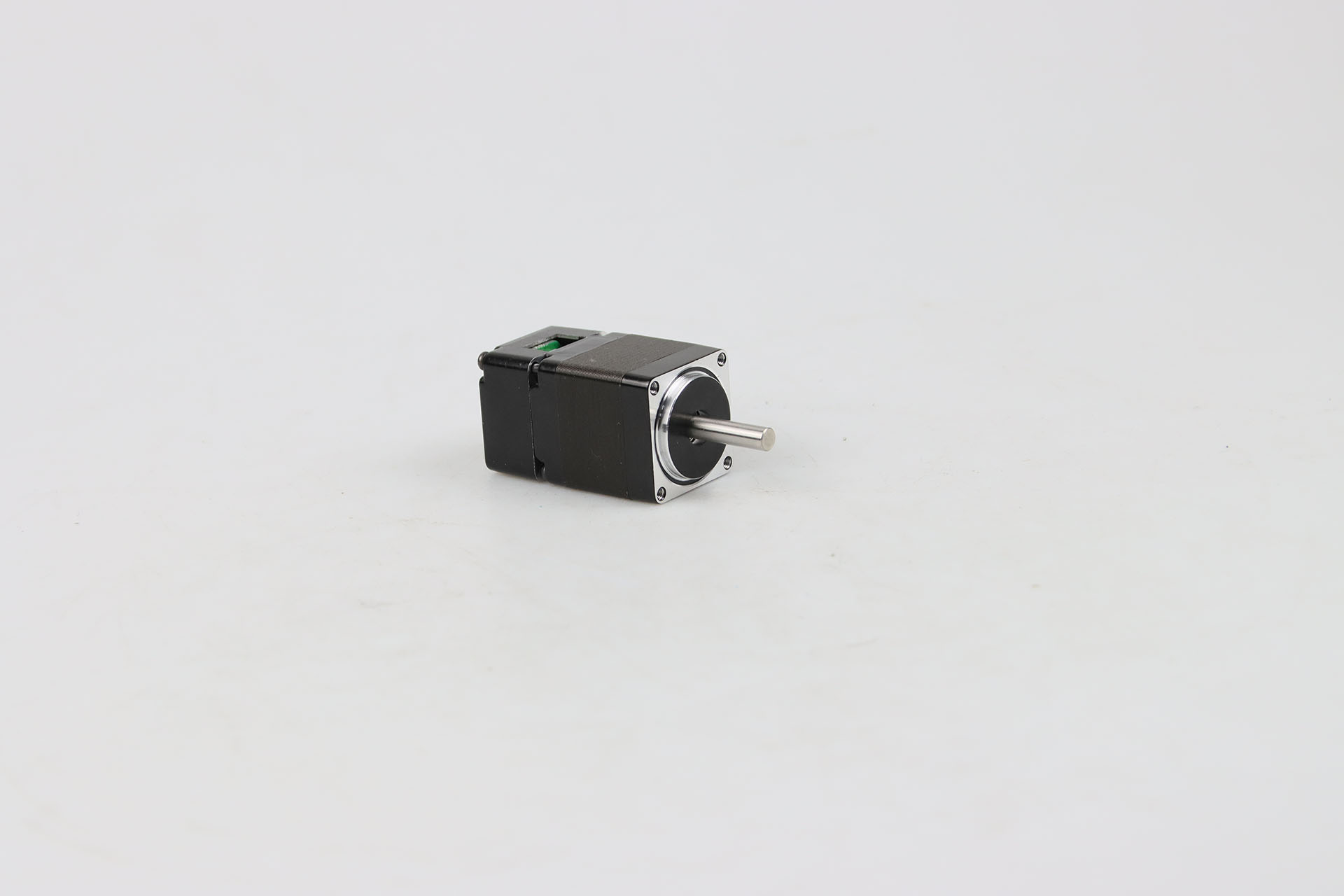

28mm 3.76VDC Hybrid Servo Stepper Motor 1.8° 0.6mNm

28mm 3.76VDC Hybrid Servo Stepper Motor 1.8° 0.6mNm Featured Image
  • 28mm 3.76VDC Hybrid Servo Stepper Motor 1.8° 0.6mNm

Short Description:

Mini stepper motor, small size, High torque, Smooth movement, Step Angle: 1.8°, NEMA11, 28x28mm. Variety of mounting connection modes: facing forward, out the side of the motor, or out the rear of the motor for flexibility and space savings.

With motor drive inside. Option: Pulse or RS485 or Canopen




Download as PDF

Product Detail

Drawing

Product Tags

Specifications

Model Lead Wire No. Voltage

[V]

 Current

A/Phase

 Resistance

[Ω]/phase

 Inductance

[mH]/phase

 Holding

Torque

[mN.m]

 Length

[mm]

 Weight

[kg]

 Step

Angle
M028HB0674-28S01 4 3.76 0.67 5.6 3.4 0.6 32 0.11 1.8°
