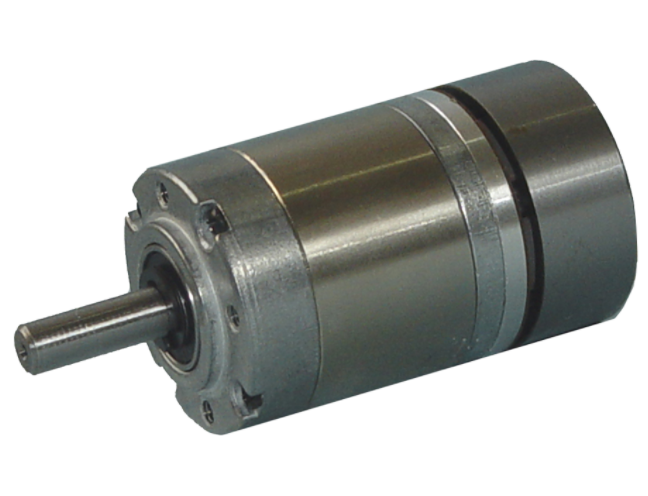

32mm 48V BLDC Planetary Gearbox Motor
Specifications
| Type |
Poles |
Rated Voltage |
No load speed |
Rated Speed |
Rated Torque |
Rated Power |
Peak Torque |
Peak Current |
| M009BI0029-32-19 |
8 |
9VDC |
3700 rpm |
2100 rpm |
29.5 mNm |
6 W |
73.8 mNm |
3.4 A |
| M012BI0025-32-19 |
|
12VDC |
4600 rpm |
2800 rpm |
25.1 mNm |
7 W |
75.3 mNm |
3.2 A |
| M024BI0025-32-19 |
|
24VDC |
4500 rpm |
2760 rpm |
25.5 mNm |
7 W |
76.5 mNm |
1.7 A |
| M048BI0024-32-19 |
|
48VDC |
4800 rpm |
2950 rpm |
24.7 mNm |
8 W |
74.1 mNm |
0.97 A |
Specifications
| Reduction ratio |
3.7 |
5.2 |
14 |
19 |
27 |
35 |
49 |
59 |
68 |
82 |
95 |
115 |
181 |
218 |
253 |
||
|
9V |
Rated speed (r/min) |
566 |
405 |
150 |
111 |
78 |
60 |
43 |
36 |
31 |
26 |
22 |
18 |
12 |
9.6 |
8.3 |
|
|
|
Rated torque (N.m) |
0.099 |
0.14 |
0.33 |
0.45 |
0.65 |
0.84 |
1.1 |
1.3 |
1.5 |
1.8 |
2 |
2.5 |
3.5 |
4.2 |
4.9 |
|
|
12V |
Rated speed (r/min) |
755 |
541 |
200 |
147 |
104 |
80 |
57 |
47 |
41 |
34 |
29 |
24 |
15 |
13 |
11 |
|
|
|
Rated torque (N.m) |
0.084 |
0.12 |
0.28 |
0.39 |
0.55 |
0.71 |
0.9 |
1.1 |
1.2 |
1.5 |
1.7 |
2.1 |
3 |
3.6 |
4.1 |
|
|
24V |
Rated speed (r/min) |
744 |
533 |
197 |
145 |
102 |
79 |
56 |
47 |
41 |
34 |
29 |
24 |
15 |
13 |
11 |
|
|
|
Rated torque (N.m) |
0.085 |
0.12 |
0.29 |
0.39 |
0.56 |
0.72 |
0.91 |
1.1 |
1.3 |
1.5 |
1.8 |
2.1 |
3 |
3.6 |
4.2 |
|
|
48V |
Rated speed (r/min) |
795 |
569 |
211 |
155 |
109 |
84 |
60 |
50 |
43 |
36 |
31 |
26 |
16 |
14 |
12 |
|
|
|
Rated torque (N.m) |
0.082 |
0.12 |
0.28 |
0.38 |
0.54 |
0.7 |
0.88 |
1.1 |
1.2 |
1.5 |
1.7 |
2.1 |
2.9 |
3.5 |
4.1 |
|
| Number of gear trains |
1 |
2 |
3 |
4 |
|||||||||||||
| Length(L)
( mm) |
25.7 |
32.8 |
39.7 |
46.6 |
|||||||||||||
| Max. permissible load in a short time(N.m) |
1.5 |
6 |
10 |
12 |
|||||||||||||
