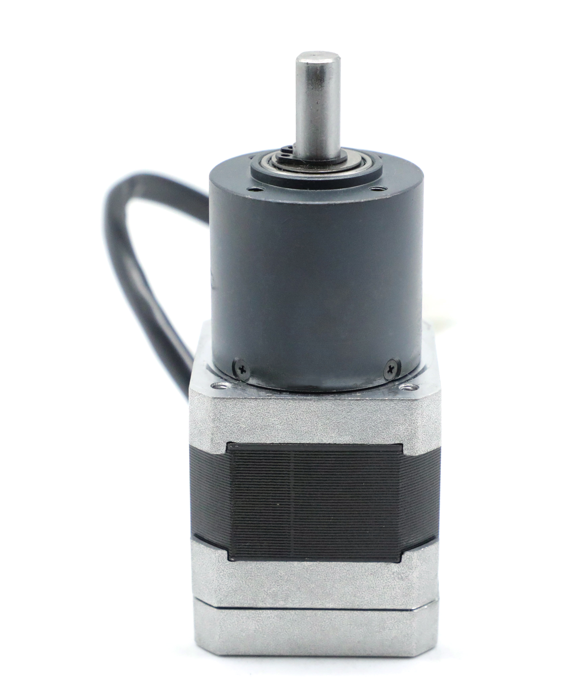

42mm 24V BLDC Planetary Gearbox Motor
Specifications
| Type |
Resistance |
Rated Voltage |
No load Speed |
No load Current |
Rated Torque |
Rated Speed |
Back EMF |
Torque Constant |
| Motor
M024BI0063-42-47 |
2.2Ω |
24VDC |
5000 rpm |
0.5A |
0.063Nm |
4000rpm |
4.4V/Krpm |
0.042Nm/A |
| Motor with gearbox
M036042-MD13 |
Rated Torque:0.66Nm |
Rated Speed:307 rpm |
Ratio:13:1 |
|||||
