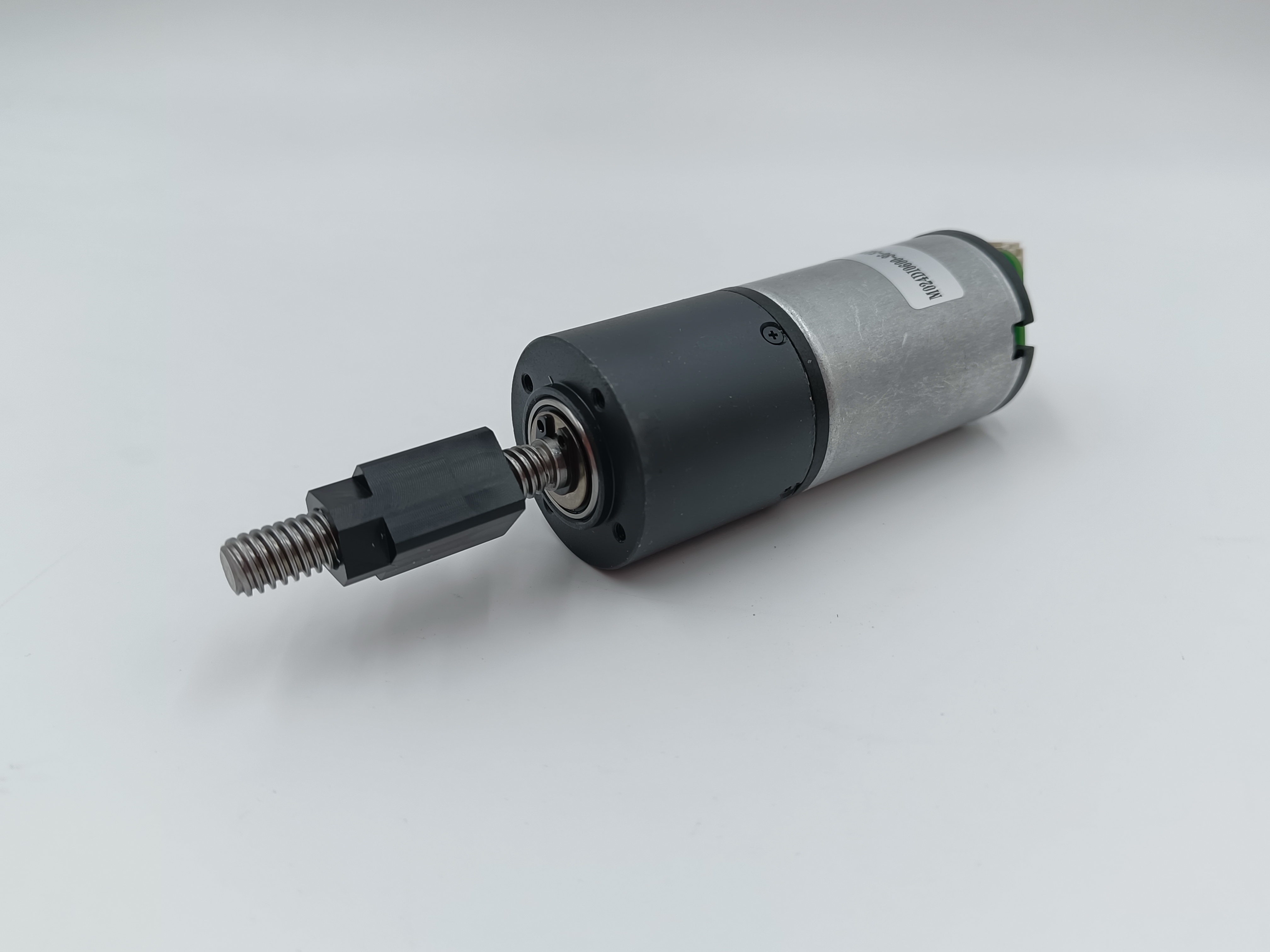

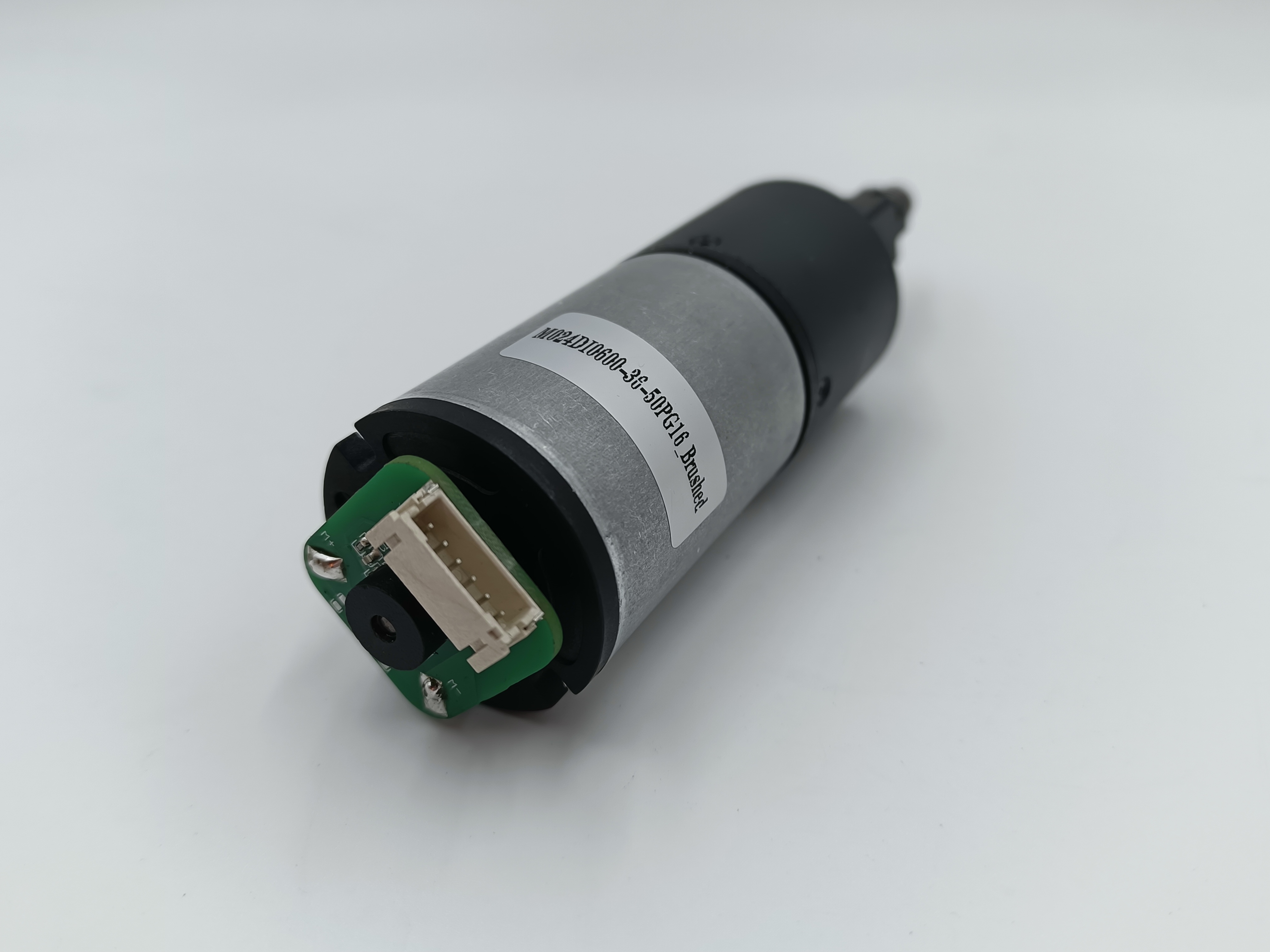

36mm 24VDC Brushed Linear motor Thrust>600N

Technical requirements:
1, rated voltage: 24V;

2, speed ratio: 1:16.25;

3, rated torque: 0.4N.m;

4,no-load speed: 20012%rpm, no-load current: <162 mA

5,rated speed: 166+12%rpm, rated current: <750 mA;

6,withstand voltage: AC600V/1 mA/1S;

7,blocking torque: >1.5N.m,blocking current: <TBD A;

8. Metal shell, ball bearing with output shaft;

9. Parts meet RoHS requirements.
