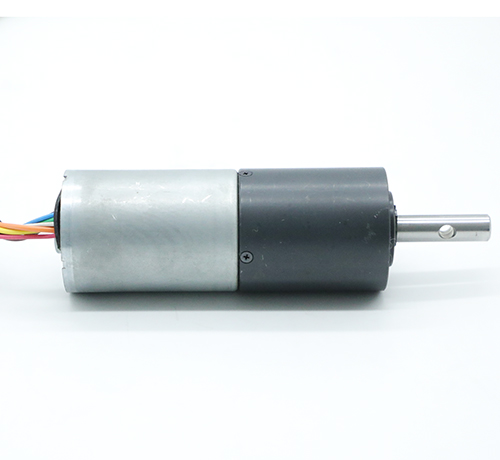

36mm 24V BLDC Planetary Gearbox Motor
Specifications
| Type |
Resistance |
Rated Voltage |
No load Speed |
No load Current |
Rated Torque |
Rated Speed |
Back EMF |
Torque Constant |
| Motor
M024BI0333-36-42 |
6.4Ω |
24VDC |
4800 rpm |
0.32A |
0.03Nm |
3500rpm |
1.6V/Krpm |
0.015Nm/A |
| Motor with gearbox
M036036-MD94 |
Rated Torque:2Nm |
Rated Speed:38 rpm |
Ratio:94:1 |
|||||
