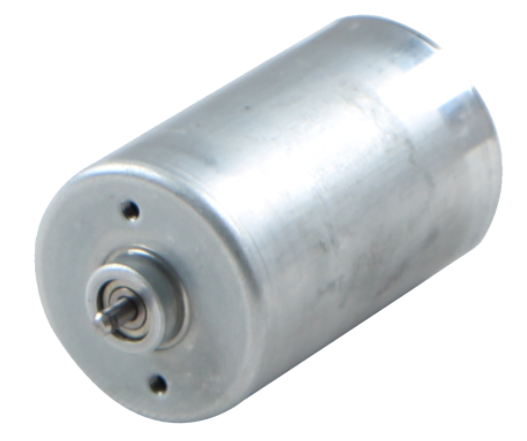

38mm 24V Inner rotor BLDC motor 4000rpm 0.07Nm 30W
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 600VAC 1S |
| Radial gap | 0.02mm@450g |
| Axial gap | 0.08mm@450g |
| IP Class | IP40 |
Technical Specifications
| Item | M024BI0070-38-58 |
| Number of Poles | 4 |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (mN·m) | 70 |
| Rated Speed (RPM) | 4000 |
| Rated Current (A) | 1.7 |
| Output Power (W) | 30 |
| Peak torque (mN·m) | 210 |
| Peak current (A) | 4.8 |
| Torque Constant (mNm/A) | 44.55 |
| Back EMF (V/KRPM) | 3.3 |
| Body Length-L (mm) | 58 |
| Weight (kg) | 0.24 |
