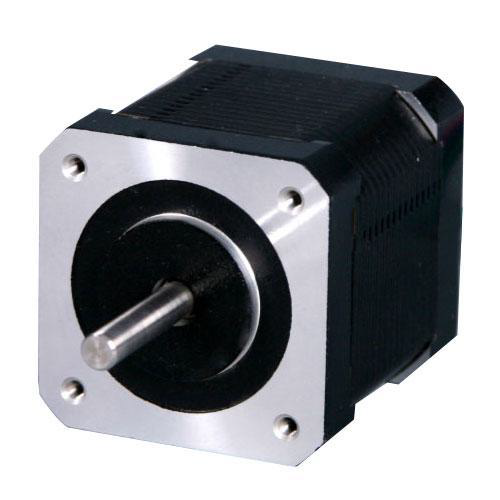

39mm 4.0VDC Hybrid Stepper Motor 0.9° 0.08Nm
Specifications
|
Type |
Voltage /phase [V] |
Current /phase [A] |
Resistance /phase [Ώ] |
Inductance /phase [mH] |
Holding Torque [Ncm] |
Detent Torque [Ncm] |
# of Leads |
Weight [kg] |
Length [mm] |
|
M039HB0504-20S1 |
4.0 |
0.5 |
8.0 |
8.4 |
8.0 |
0.5 |
4 |
0.100 |
20 |
