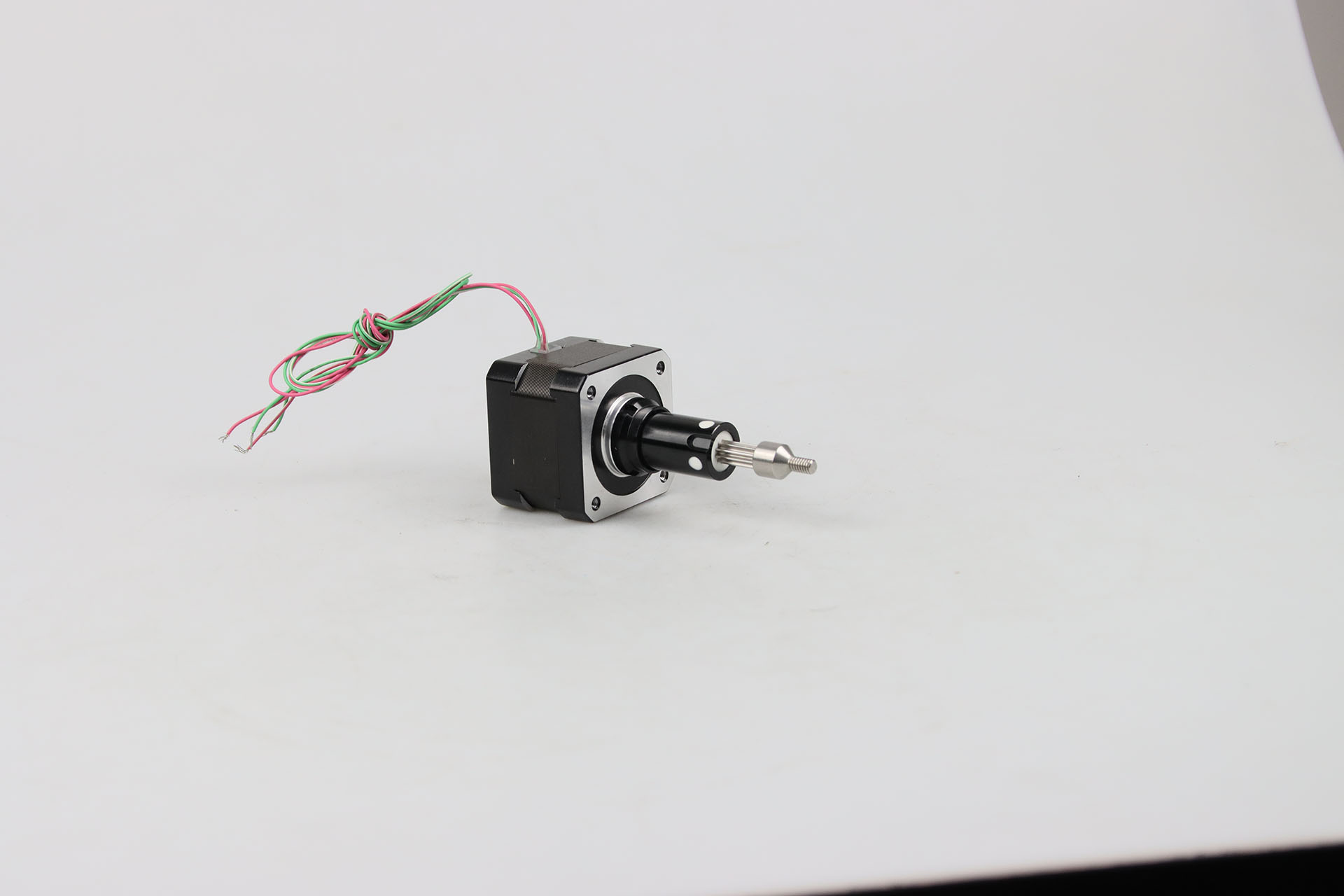

57mm 10VDC Linear Hybrid Stepper Motor 1.8° 0.27Nm

Short Description:

NEMA17, Captive linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.


Product Detail

Drawing

Product Tags

Specifications

Item General Specifications
Step Angle 1.8°
Step Angle Accuracy ±5% (full step, no load)
Temperature rise 80°C Max
Insulation Resistance min. 100MΩ, 500VDC
Ambient Temperature -20°C~+50°C
Dielectric Strength 500VAC for one minute
Max. radial force (20mm from the flange)

Specification





Type

Lead

Wire

No.

Voltage

[V]

Current

A/Phase

Resistance

[Ω]/phase

Inductance

[mH]/phase

Holding

Torque

[Kg.cm]

Length

[mm]

Weight

[kg]

M012TI0280-57-34 4 12 0.4 30 35 2.8 34 0.24
M002TI0280-57-34 4 2.79 1.33 2.1 2.5 2.8 34 0.24
M003TI0420-57-40 4 3.4 1.3 2.6 4.5 4.2 40 0.3
M002TI0420-57-40A 4 2.55 1.7 1.5 2.3 4.2 40 0.3
M002TI0420-57-40B 4 2.55 1.7 1.5 2.3 4.2 40 0.3
M012TI0440-57-48 4 12 0.4 30 45 4.4 48 0.4
M002TI0500-57-48A 4 2.8 1.68 1.65 2.3 5 48 0.4
M002TI0500-57-48B 4 2.8 1.68 1.65 2.3 5 48 0.4
M005TI0730-57-60 4 5.1 1.7 3 6.2 7.3 60 0.55
