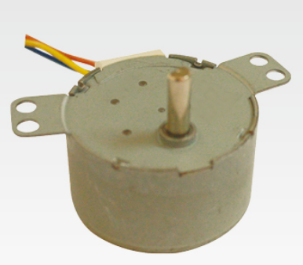

42mm 110/220V Synchronous PM stepper motor 0.3Nm 5/6rpm 5W
Specifications
|
Type |
Rated Voltage [V] |
Operation Frequency [Hz] |
Rated Speed [rpm] |
Input Current [mA] |
Input Power [W] |
Stall Torque [kgf.cm] |
Starting Voltage [V] |
Temper ature Rise[K] |
Noise dB [A] |
Insul ation Class |
Weig ht [g] |
| M110AI0294-42-24 |
110/120 |
50/60 |
5/6 |
≤45 |
≤5 |
≥3 |
≤96 |
≤65 |
≤40 |
E |
130 |
