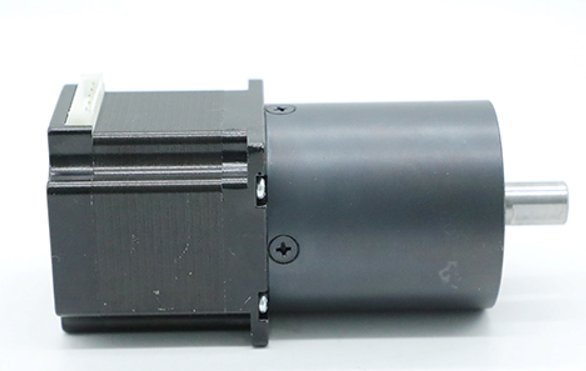

42mm 24V BLDC Planetary Gearbox Motor
Specifications
| Type |
Resistance |
Rated Voltage |
No load Speed |
No load Current |
Rated Torque |
Rated Speed |
Back EMF |
Torque Constant |
| Motor
M024BI0330-57-94 |
0.35Ω |
24VDC |
4500 rpm |
1 A |
0.33Nm |
3000rpm |
6.5V/Krpm |
0.062Nm/A |
| Motor with gearbox
M056057-MD06 |
Rated Torque:1.6Nm |
Rated Speed:500 rpm |
Ratio:6:1 |
|||||
| Motor with gearbox
M056057-MD15-A |
Rated Torque:3.5Nm |
Rated Speed:200 rpm |
Ratio:15:1 |
|||||
