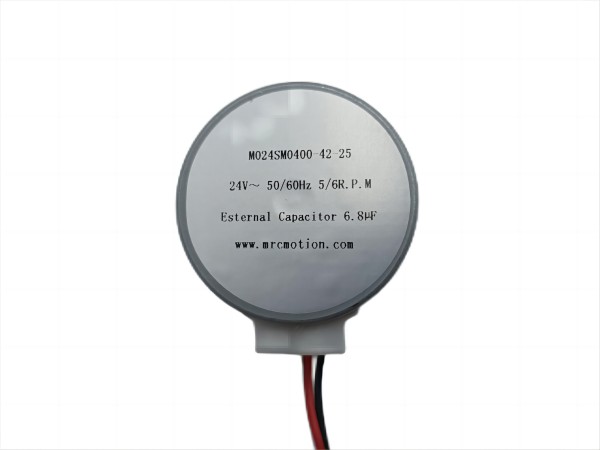

42mm 24V PM stepper motor 5/6RPM 0.392Nm 4W

Short Description:

PM stepper motor Φ42mm 24V 5/6RPM  0.392Nm 4W










Product Detail

Drawing

Product Tags

Rated voltage 24V
Power frequency 50/60 Hz
Power consumption 4W
Output consumption 0.12W
Input current 200mA
Rotor speed 5/6r/min
Roter direction Bidirectional reversible
Output torque 4 kg.cm
Starting voltage 20.4V~(60Hz)
Insulation Resistance 100 MΩ/500 VDC
Electric strength 600V~/1sec  0.5mA
Noise 45 dB  (Distance 30cm)
Temperature 80K (24V~/60Hz)
Insulation class B
