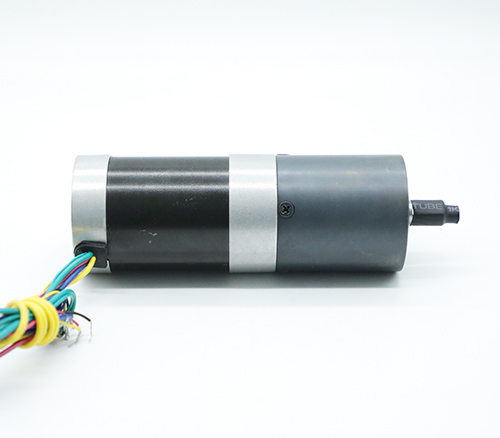

56mm 24V BLDC Planetary Gearbox Motor

Short Description:


Product Detail

Drawing

Product Tags

Specifications

Type

Resistance

Rated

Voltage

No load

Speed

No load

Current

Rated

Torque

Rated

Speed

Back

EMF

Torque

Constant

Motor

M024BI0330-57-94

0.35Ω

24VDC

4500 rpm

1 A

0.33Nm

3000rpm

6.5V/Krpm

0.062Nm/A

Motor with gearbox

M056057-MD06

Rated Torque:1.6Nm

Rated Speed:500 rpm

Ratio:6:1

Motor with gearbox

M056057-MD15-A

Rated Torque:3.5Nm

Rated Speed:200 rpm

Ratio:15:1
