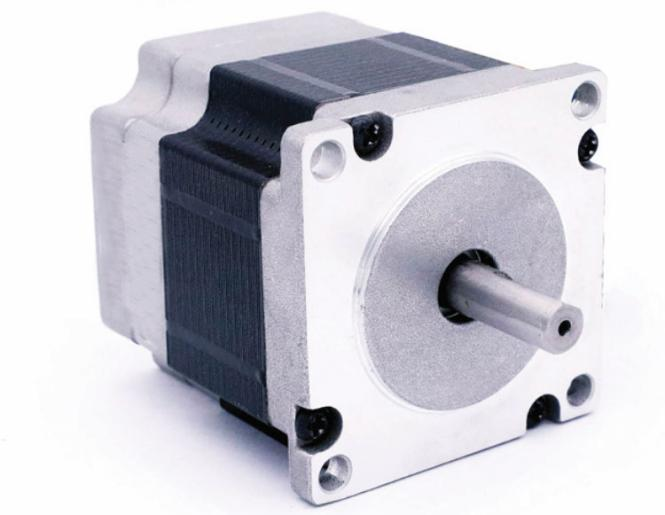

57mm 24V Inner rotor BLDC motor 3000rpm 0.8Nm 251W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 115N(10mm from front flange) |
| Max Axial Force | 45N |
| Item | M024BI0200-57-59 | M024BI0400-57-80 | M024BI0600-57-101 | M024BI-0800-57-122 |
| Number of Poles | 8 | 8 | 8 | 8 |
| Nominal Voltage (VDC) | 24 | 24 | 24 | 24 |
| Rated Torque (N·m) | 0.2 | 0.4 | 0.6 | 0.8 |
| Rated Speed (RPM) | 3800 | 3000 | 3000 | 3000 |
| Rated Current (A) | 3.33 | 6.67 | 10.0 | 8.87 |
| Output Power (W) | 80 | 125 | 188 | 251 |
| Peak torque (N·m) | 0.6 | 1.2 | 1.8 | 2.4 |
| Peak current (A) | 10.0 | 20.0 | 30.0 | 26.6 |
| Torque Constant (N·m/A) | 0.06 | 0.06 | 0.06 | 0.09 |
| Back EMF (V/KRPM) | 6.3 | 6.3 | 6.3 | 9.47 |
| Body Length-L (mm) | 59 | 80 | 101 | 122 |
| Weight (kg) | 0.61 | 0.94 | 1.25 | 1.59 |
