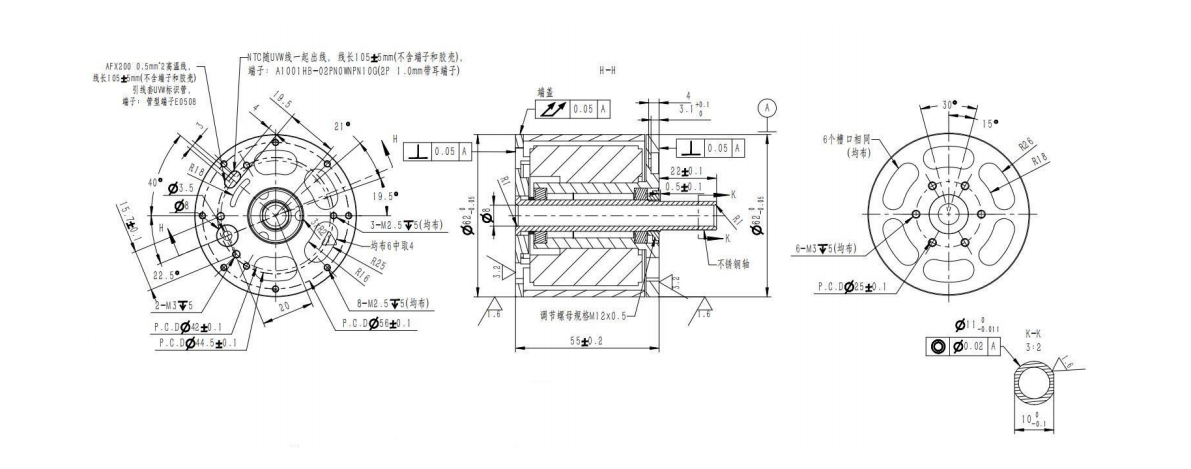

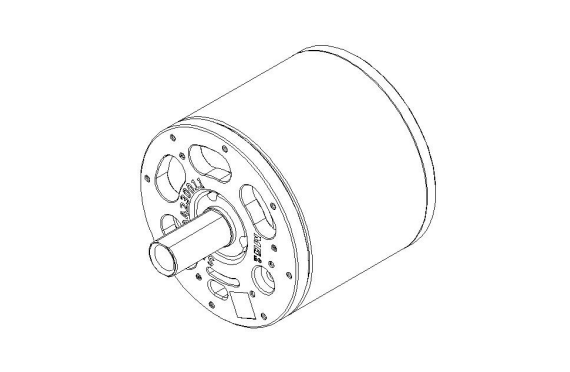

62MM 48V Outer Rotor Brushless Motor 150RPM 2NM 31.5W
| Model | M048BE2000-62-55 | Resistance | 7.2Ω±5% |
| Rated voltage | 48VDC | Inductance | 16mH±5% |
| Rated speed | 150rpm | Torque constant | 1.33Nm/A |
| Rated torque | Nm | Back EMF constant | 77.2V/Krpm |
| Rated power | 31.5Nm | Rotor inertia | 146Kg*m㎡ |
| Rated current (phase current) | 1.5A | weight | 700±5g |
| Peak current (phase current) | ≤3.25A | Insulation class | B |
| Peak torque | 4Nm | Maintain temperature rise | 65K |
| Phase number | 3 | Dielectric strength | 550VAC，＜5mA |
| Number of poles | 16 | Insulation resistance | ≥50Ω |
