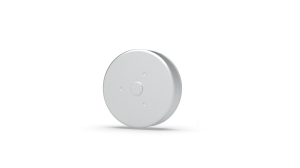

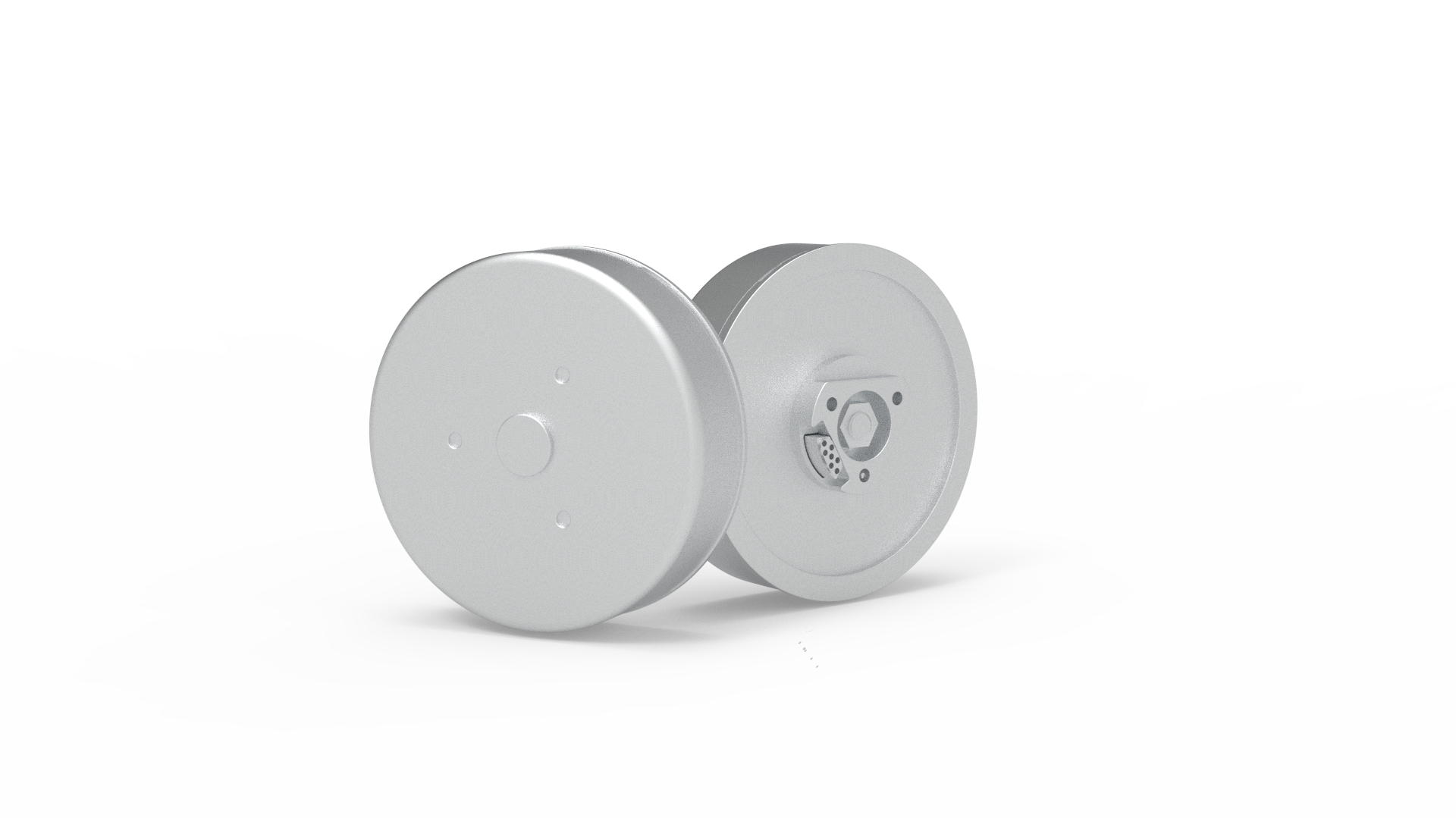

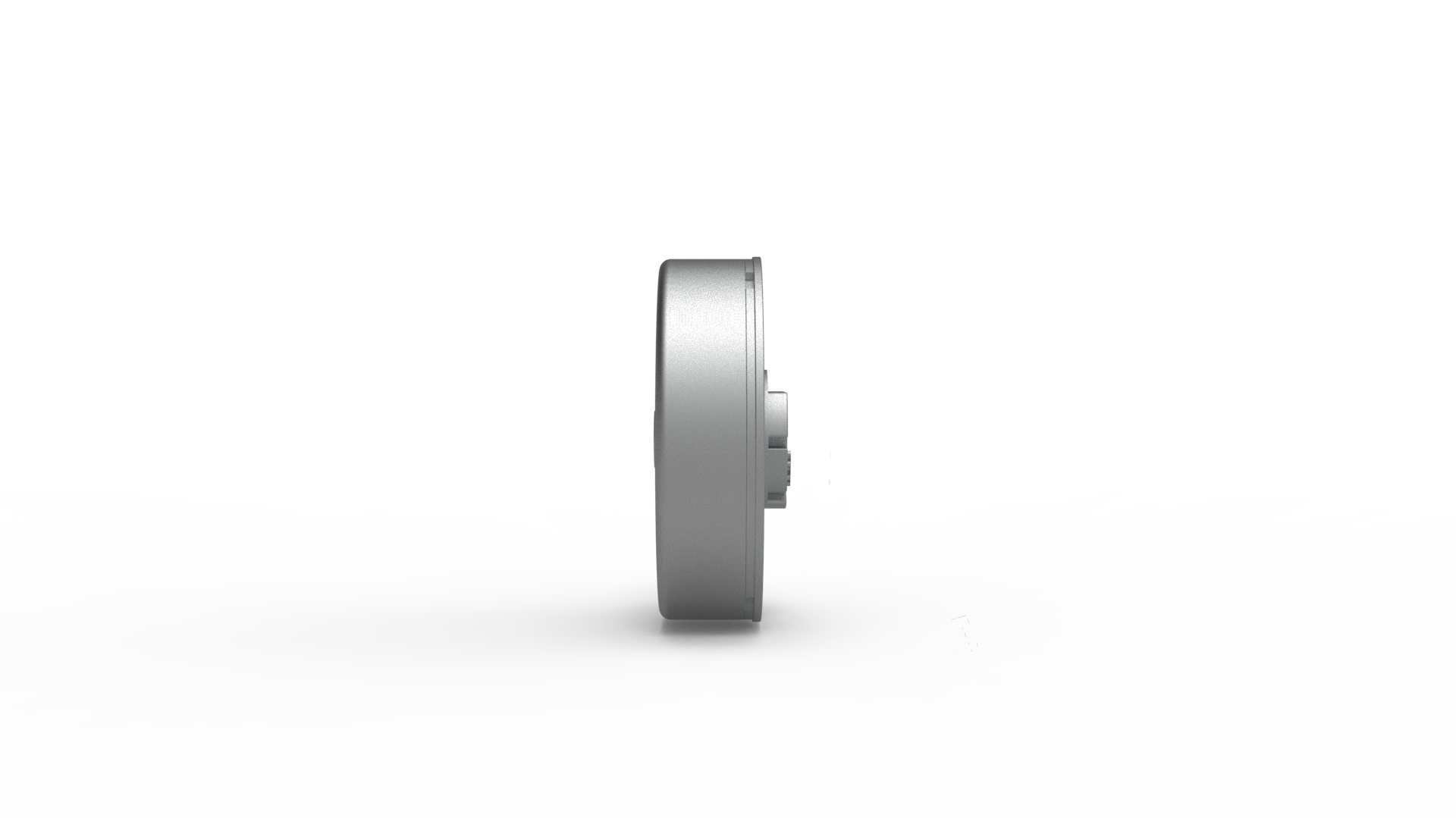

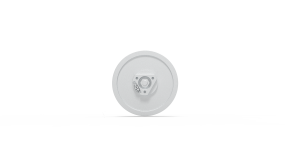

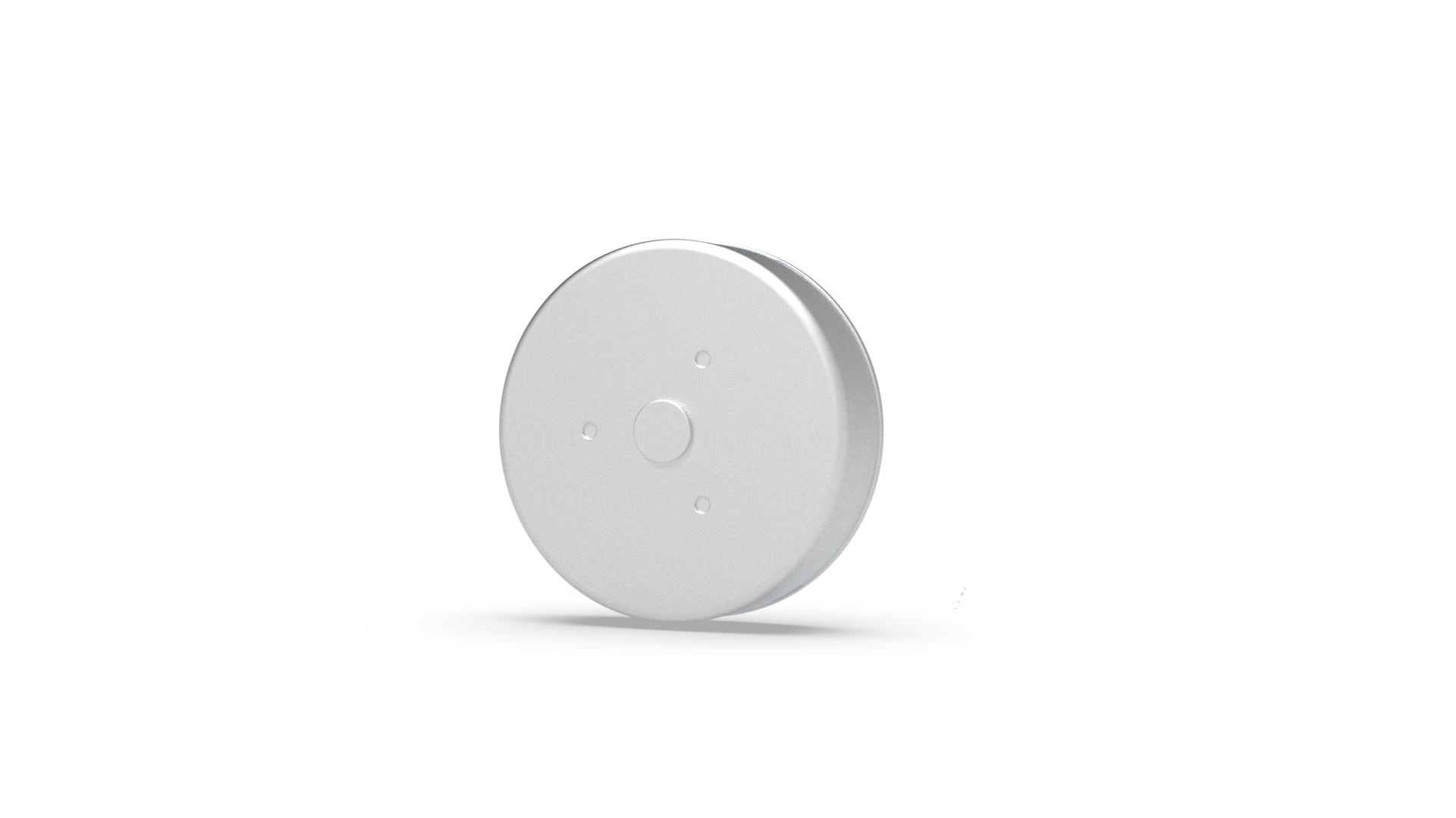

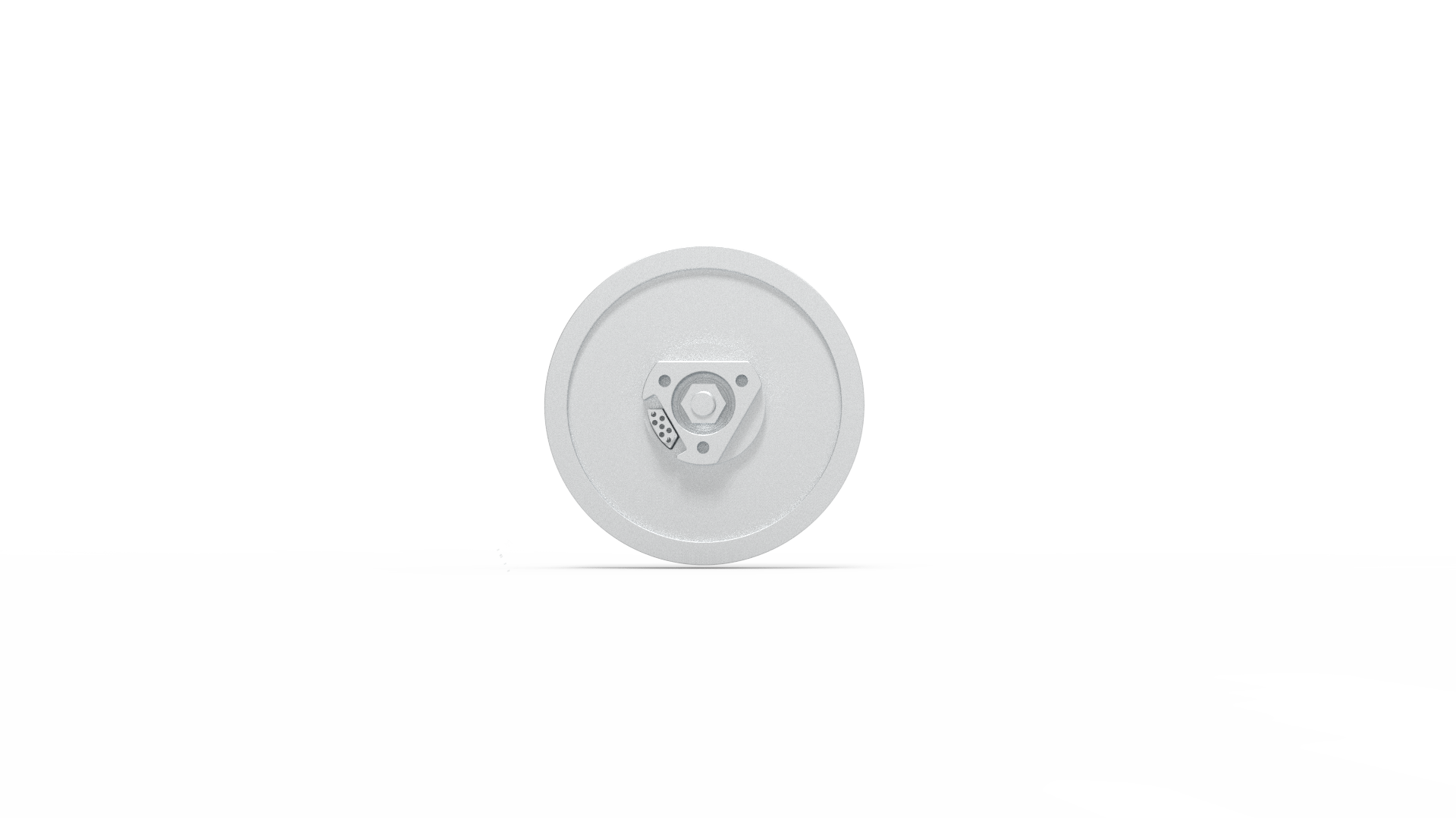

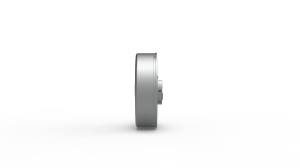

65MM 14.4V Hub Motor 98RPM 0.25NM 2.6W

Short Description:

65MM 14.4V Hub Motor 98RPM 0.25NM 2.6W


Product Detail

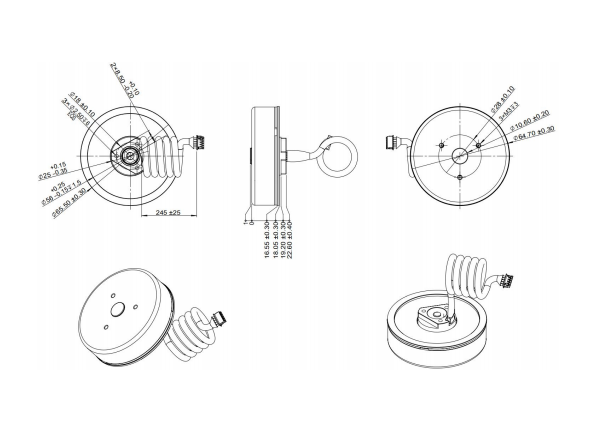

Drawing

Performance

Product Tags

1. Motor and driver integrated design, compact structure, high integration; 2. Support UART communication mode 3. Special structural design allows the temperature sensor to measure the overall temperature of the motor for more accurate control; 4. Through communication, it can get the position, speed, current, fault code and other information of the motor; 5. With Hall position detection, over-current protection and other functions; 6. Support electric brake.

16949 Certificate Of Quality System

16949

Patent Display

1
2

Company Profile

MRC Motion is a global company offering sales and project management services for worldwide customers, which specialises in designing and manufacturing various DC and AC motors certificated by IATF 16949: 2016. Based in Changzhou, China - 5km from Changzhou Airport and 1 hour to Shanghai by train.

  MRC offers local support of sales, technical and logistical services through our office in Balingen, Germany.

  We are a passionate and dedicated team, combining our interests and talents to achieve success. We develop what our customers need because we know what they are looking for. Our goal is to make complicated things simple.

  Since 2004, we have been focussing on customer-specific solutions, quality and innovation with our range of DC traction motors, brushless motors, three-phase AC frequency conversion motors and permanent magnet synchronism motors.

  As a result, there are wide applications in e-mobility such as tourist cars, golf cars, sweeper cars, forklift trucks and electrical vehicles and in other industries such as robots, pumps, air-conditioners and air compressors.

  Research and development are the basis for future viability. This can either be product modifications or new innovations. Cooperation with institutes of higher education and universities ensures that our drive systems meet the demands of new technology.

  In addition to continuous product development, the departments are responsible for ongoing improvement of manufacturing processes, production and testing systems.

  Our core business is providing precision motion control solutions with great advantage on pricing, time, quality, reliability, traceability and flexibility.

  Our mission is to fulfill highest requirements from our customers easily and quickly.

  Work with us, win together!

Product Introduction

MRC Motion(1)
MRC Motion(2)
MRC Motion(3)
MRC Motion(4)

Workshop Display

1
2
3
4
5
6

Laboratory Display

1
2
5
6
7
8

Raw Materials Of Gearbox Stepper Motor

微信截图_20240109172314.jpg1

Automatic Winding Machine

Automatic winding machine.jpg1
微信截图_20240109173035

Automatic Assembly Line

微信截图_20240109173242(1)

  • Previous:
  • Next:

  • 图片2

    Model M014HB0250-65-18 Blocking current ≤4.5A
    No-load speed 200±15rpm Rated voltage 14.4VDC
    No-load current ≤0.15A Operating voltage range 11VDC-22VDC
    Rated speed 98rpm Operating temperature -5℃-40℃
    Rated torque 0.25Nm Motor weight 216g
    Rated current 0.5A Encoder resolution 12bit
    Maximum efficiency ≥50% Noise level ≤45dB(A)
    Blocking torque 0.85Nm
