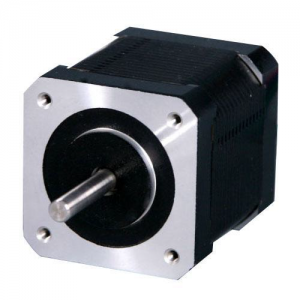

86mm 1.9VDC Hybrid Stepper Motor 1.8° 4Nm
Specifications
|
Type |
Voltage /phase [V] |
Current /phase [A] |
Resistance /phase [Ώ] |
Inductance /phase [mH] |
Holding Torque [Ncm] |
Detent Torque [Ncm] |
# of Leads |
Weight [kg] |
Length [mm] |
|
M086HB5604-80S0 |
1.9 |
5.6 |
0.34 |
2.9 |
400 |
6.5 |
4 |
2.3 |
80 |
