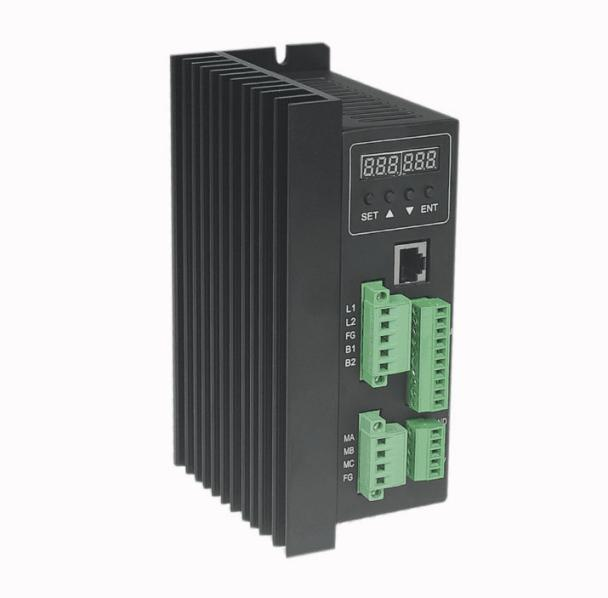

AC85V~AC265V 750W BLDC Driver
Specifications
| Item | Specifications |
| Voltage | 85~265VAC |
| MAX Power | 750W |
| Communication mode | Adopt standard Modbus protocol, use RS485 based two-wire serial link communication, physical interface using an RJ45 terminal, transmission mode RTU. |
| Cooling method | Heat sink method |
| Protection | Over current, over heat over speed over voltage under voltage control power supply abnormal |
| Operating temperature | 0~+45°C |
| Continuous output current | 3.5A |
