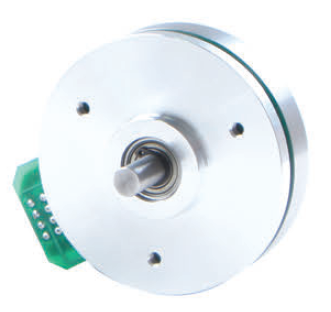

90mm 48V Outer rotor Brushless motor 1670rpm 0.964Nm 169W
Specifications
| Type | M048BE0964-90-40 |
| Number of Poles | 22 |
| Number of Phases | 3 |
| Nominal Voltage (VDC) | 48 |
| No-load Speed (RPM) | 1900 |
| Rated Speed (RPM) | 1670 |
| Rated Torque (N·m) | 0.964 |
| Rated Power (W) | 169 |
| Peak Torque (N·m) | 3 |
| Peak Current (A) | 13 |
| Resistance (ohms) | 0.65 |
| Inductance (mH) | 0.9 |
| Torque Constant (mN·m/A) | 241 |
| Back EMF (V/KRPM) | 17.9 |
| Rotor Inertia (g·cm2) | 5000 |
| Body Length (mm) L | 40 |
| Weight (kg) | 1 |
| Winding type | Star |
| Hall Effect Angle | 120°Electrical angle |
| Insulation Class | B |
| Insulation Resistance | min. 100MΩ, 500VDC |
| Dielectric Strength | 600VAC for one second |
| Shaft Radial Play | max. 0.02 (4N-load) |
| Shaft Axial Play | max. 0.14 (4N-load) |
| Max. radial force | 110N @10mm from the flange |
| Max. axial force | 45N |
