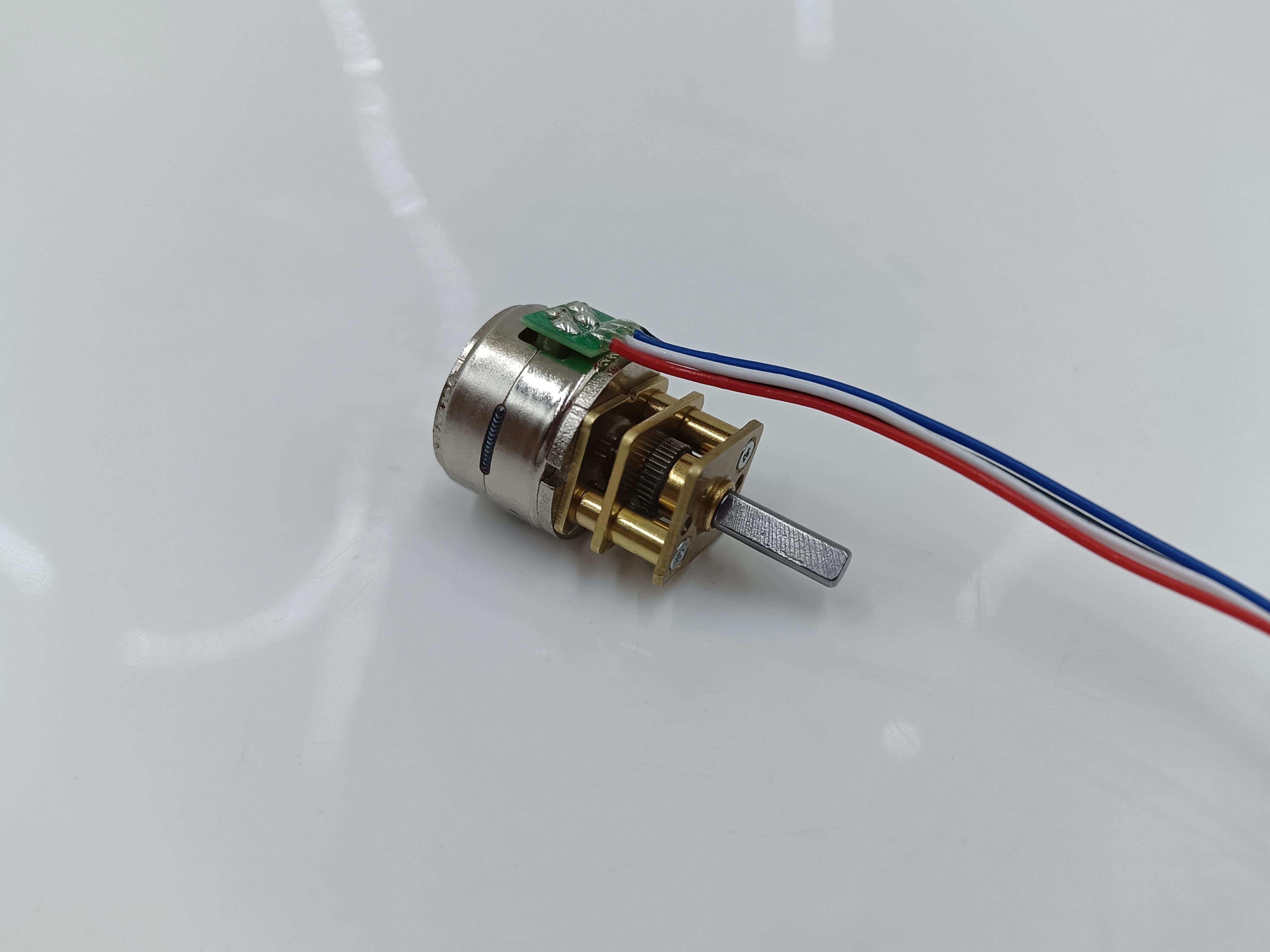

Electric mobile phone support 15MM Stepper motor
Rated voltage 12VDC Step angle 18° Operating temperature -10°C ~ +60°C No load speed 270±10％ rpm No load current 350±20％ mA Max number of response cycles >1500 Max number of auto-start cycles >1000 Pull out torque >207 gf.cm Resistance 31±10...Read more -
Tractor 110mm Brushed Motor
Specification Voltage 24V Power 750W Torque 3.5Nm Speed 2100±8％ RPM 16949 Certificate Of Quality System Patent Display ...Read more -
Milk Mixer 83mm Single Phase Motor
Motor Specification Voltage 230V/50HZ Rated power (W) 40W Rated Torque (N·m) 0.29Nm Gearbox Specification Rated Speed (RPM) 1300rpm Ratio 50 Rated Current (A) 0.55A Efficiency 65% IP class IP44 Output torque 9.4Nm Insulation class B Output speed 26rpm Pro...Read more -
Coffee Maker 42mm Inner Rotor BLDC Motor
Read more -
Electric screw driver 38mm Inner Rotor BLDC Motor
Rated voltage 320 VDC Peak torque 2Nm No load speed 27000±10％ RPM maximum current 20ARead more -
Electric Roller shutter door 130mm Frameless motor
Number of phase 3 Number of poles 30 Line to line resistance 0.08±10％ ohms@20°C Line to line inductance 0.145±20％ mH@ lkHz Rated voltage 48 VDC No load speed 3120±10％ RPM No load current 1.5 A （REF） Rated torque 3.5 N.m Rated speed 2500±10％ RPM ...Read more -
Hot Air Blower 32mm Brushed DC Motor
Specifications Specification Model Voltage [V] No load Load at 50g-cm Dielectric strength Insulation resistance Start Voltage Nominal Voltage Speed [rpm] Current [A] Speed [rpm] Current [A] Start Torque [g-cm] Powe...Read more -
Car Pedal 38MM BLDC Planetary Gearbox Motor
Specifications Motor Specifications: Model Rated Speed Rated Torque Rated Voltage Compliant Motor Length Overall Length Reduction ratio rpm N.m V mm mm M038038-MD25IE 580±10% 1.2 12 ROHS 65 108...Read more -
Electric curtain 23MM BLDC Planetary Gearbox Motor
Specifications Model No load Speed No load Current Rated Voltage Rated Speed Rated Torque Rated Current Mechanical Noise rpm A V rpm Nm A dB M022023-MD50 39-49 ≤0.35A 12 ≥30 2 ≤1.7A ≤60 ...Read more -
Barrier gate 57MM BLDC Planetary Gearbox Motor
Item M024BI9300-57-104 Nominal Voltage (VDC) 24 Rated Torque (N·m) 9.3 Rated Speed (RPM) 100±10% Resistance (OHMS) 0.33 Output Power (W) 97 Torque Constant (N·m/Apms) 0.63 Back EMF Constant(V/kRPM) 6.67 Body Length-L (mm) 104 Weight (...Read more -
Medical Stretcher 62mm BLDC Outer Rotor Motor
Specification Type M025BE0800-62-47 Number of Poles 14 Number of Phases 3 Nominal Voltage (VDC) 25 No-load Speed (RPM) 6850 No-load Current (A) 2.5 Rated Speed (RPM) 5850 Rated Torque (mN·m) 800 Rated Power ...Read more -
Train Gate 65MM BLDC Gear motor
Specifications Motor without gearbox Rated voltage 110 VDC Output power 134 W Rated torque 0.4 Nm Rated current <1.8A Rated speed 3200±5% rpm Motor with gearbox Rated torque 2.5 Nm Rated speed 457±5% rpm Ratio 7:1 Die...Read more
