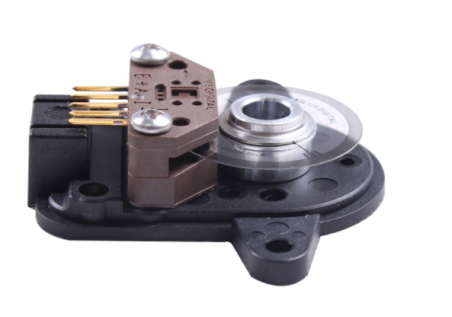

Optical encoder

Best for NEMA 17, 23 & 34

Single ended or differential output options

32 to 5,000 cycles per Revolution (CPR)

128 to 20,000 pulses per revolution (PPR)

Positive finger-latching polarized connector

Tracks from 0 to 720,000 cycles/sec (Dependent on CPR)

Optional index (3rd channel)

-40 to 100oC operating temperature (Operating temperature dependent on CPR)

Through shaft hole option available
