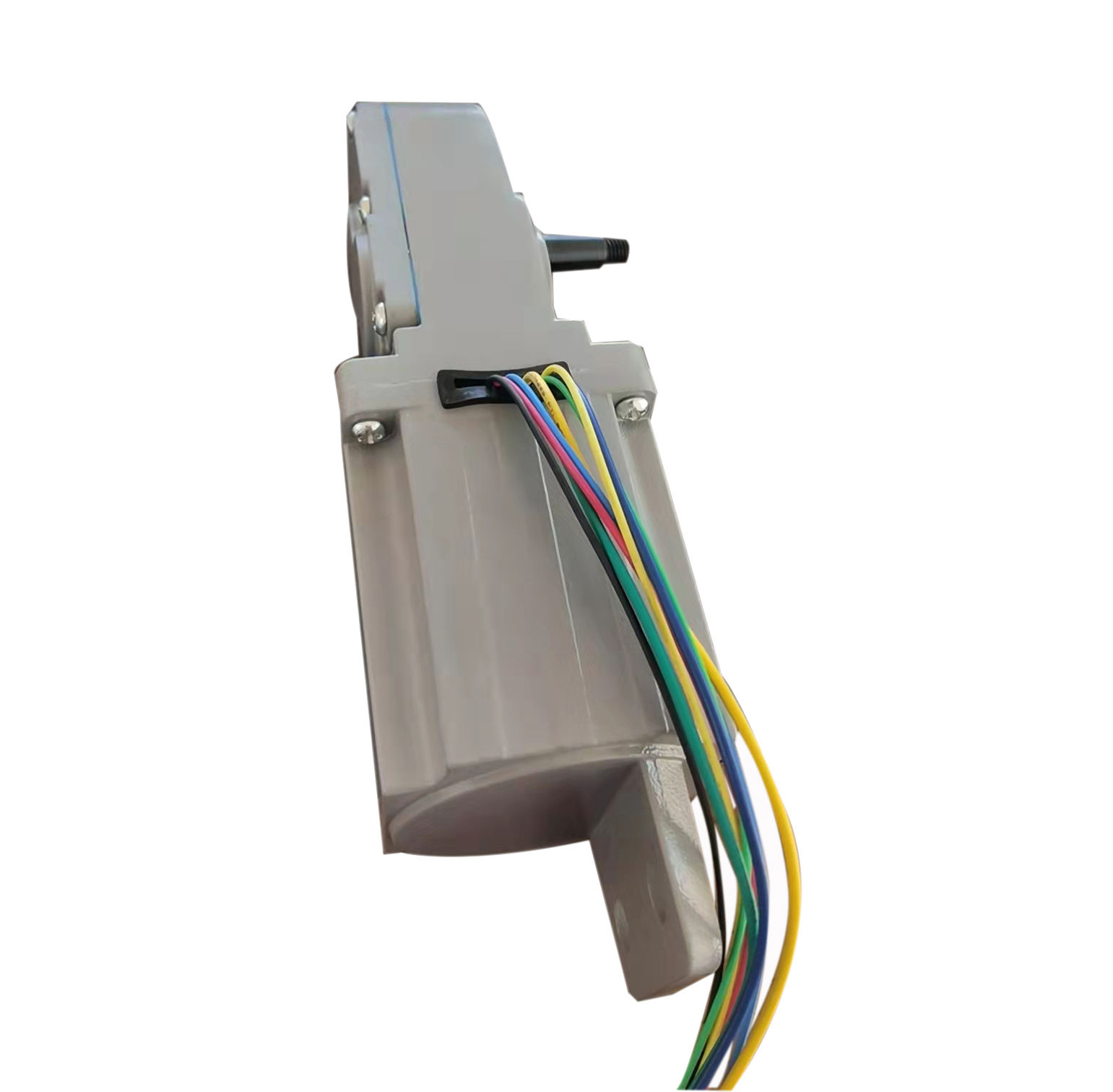

60mm 24V BLDC Worm Gearbox Motor
Specifications
| Type |
Resistance |
Rated Voltage |
No load Speed |
No load Current |
Rated Torque |
Rated Speed |
Back EMF |
Torque Constant |
| Motor
M024BI0200-60-96 |
0.7Ω |
24VDC |
4200 rpm |
1.5A |
0.2Nm |
3200rpm |
5.7V/Krpm |
0.044Nm/A |
| Motor with gearbox
M060060-MD12 |
Rated Torque:1Nm |
Rated Speed:260 rpm |
Ratio:12.4:1 |
|||||
